Installer settings

ATTENTION

Be sure to configure the settings according to the connected devices. Otherwise, the station may not operate properly.

NOTE

While in the settings menu, no operations such as calls or notifications can be performed.
The station will enter standby mode (the display will turn off) after about one minute of no operation. If this occurs, any unfinished setting changes will be lost.

No.	Item	Details	Setting value ([ ]: Default)
1	Contact output time (*)
	Option output duration	Sets the option output duration time.	1/[5]/10/20/30 (sec)
	Door release duration	Sets the unlocking duration for the electric door lock.	1/[5]/10/20/30 (sec)
2	Initialize	Resets all settings to default.	-

(*): The setting values should be the same as those of other monitor station.

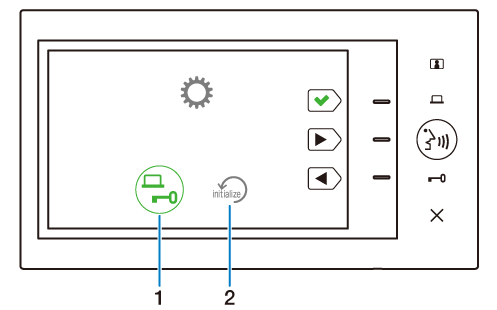

Installer setup menu screen

Tap one of the function buttons in standby mode.
The menu screen will be shown.
Tap and hold for 5 seconds or more.
The installer setup menu screen will be shown.
Tap the function button () or () to select , then tap the function button (✔).

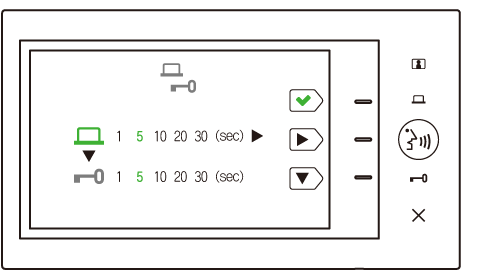

The contact output time screen will be shown.
Tap the function button () to select .
Tap the function button () to adjust the door release duration.
Tap the function button (✔) to apply changes.

ATTENTION
