JV-1MD/JV-DV/JV-DVF Installation Manual

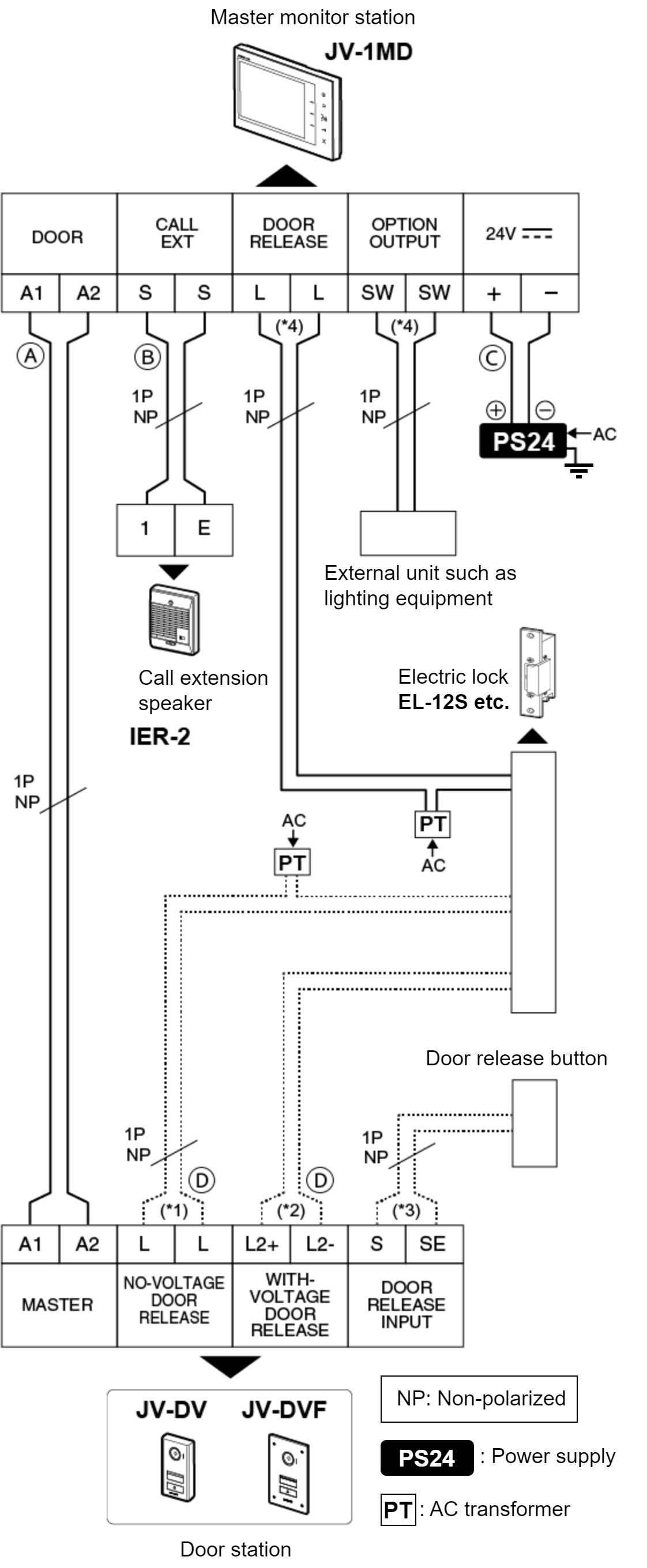

Wiring diagram and specifications


ATTENTION

  • Do not use the unused terminals for other purposes.
  • The wiring between each device should not be in the same wiring jacket.
  • Insulate and secure unused low-voltage lines.
  • Only connect an electric lock to a single location.
  • The external door release button activates only electric lock which is connected to door station.

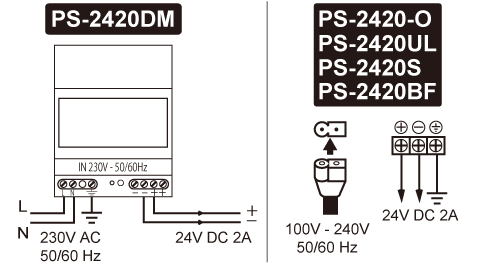

  • Be sure to ground the power supply.

NOTE

  • The sequence of terminals in the diagram may differ from the actual product.

  • Also refer to the instructions for each device to be connected.


Wiring distance

PE Φ0.65 mm (22 AWG): 50 m (165')
PE Φ0.8-1.2 mm (20-16 AWG): 100 m (330')
PE Φ0.65 mm (22 AWG): 50 m (165')
PE Φ0.8-1.2 mm (20-16 AWG): 150 m (490')
PE Φ0.65 mm (22 AWG): 5 m (16'5")
PE Φ0.8 mm (20 AWG): 10 m (33')
PE Φ0.65 mm (22 AWG): 15 m (49')
PE Φ0.8-1.2 mm (20-16 AWG): 30 m (98'5")
Others PE Φ0.65-1.2 mm (22-16 AWG)

NOTE

  • The wiring distance between the master monitor station and the power supply can be extended up to 25 m (82') by using a PE Φ1.2 mm (16 AWG) cable. However, the maximum distance between the door station and the master monitor station will be shortened to 70 m (230') by using a PE Φ0.8-1.2 mm (20-16 AWG) cable.
  • When the wet contact output from the door station is 12 VDC, 580 mA (higher than 500 mA, 580 mA or lower), the wiring distance between the door station and the master monitor station should be 70 m (230') or shorter by using a PE Φ0.8-1.2 mm (20-16 AWG) cable.


(*1): Output specifications

Output method

Dry contact (N/O)
Contact rating

24 VDC, 1 A (resistive load)


(*2): Output specifications

Output method

Wet contact (N/O)
Output current

500 mA or less
Output voltage 12 VDC


(*3): Input specifications

Input method Dry contact (N/O)
Detection time 100 msec or more
Contact resistance 300 Ω or less
Terminal short-circuit current

10 mA or less
Voltage between terminals

5 VDC or less (between open terminals)


(*4): Output specifications

Output method Dry contact (N/O)
Contact rating 24 VDC, 1 A (resistive load)
