JV-DV

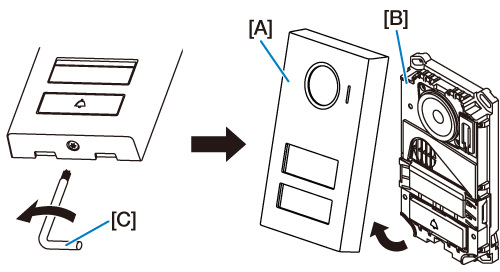

1. Remove the front panel [A].
   Loosen the special screw with the included special screwdriver [C], and remove the front panel from the station [B].

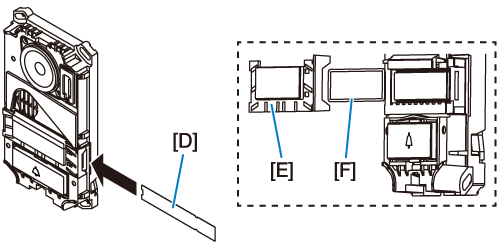

2. Insert the filled-in nameplate [D].
   Refer to "Filling in the nameplate" for nameplate instructions.




   ATTENTION Do not put a sticker over the nameplate cover [E]. This will decrease the LED's nighttime illumination. Do not remove the nameplate cover except for maintenance. If the packing [F] is not installed properly, water may enter the nameplate.

3. Connect wires to the station [B].
   Slide down and then open the terminal cover on the back of the station, and strip 8 mm (5/16") of the wire jacket and insert it into the terminal. If it is difficult to insert, press and hold the release button while inserting.
   Be sure to close the terminal cover, then slide it up.




   ATTENTION Failure to slide up the cover may cause water to enter the terminals, etc., resulting in damage to the station.

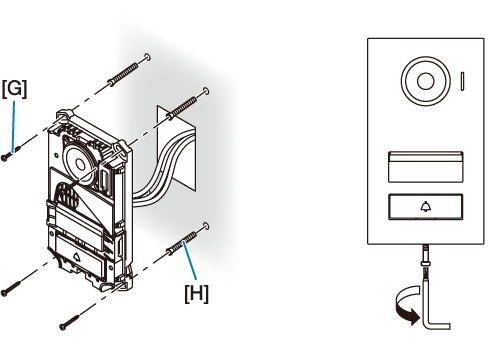

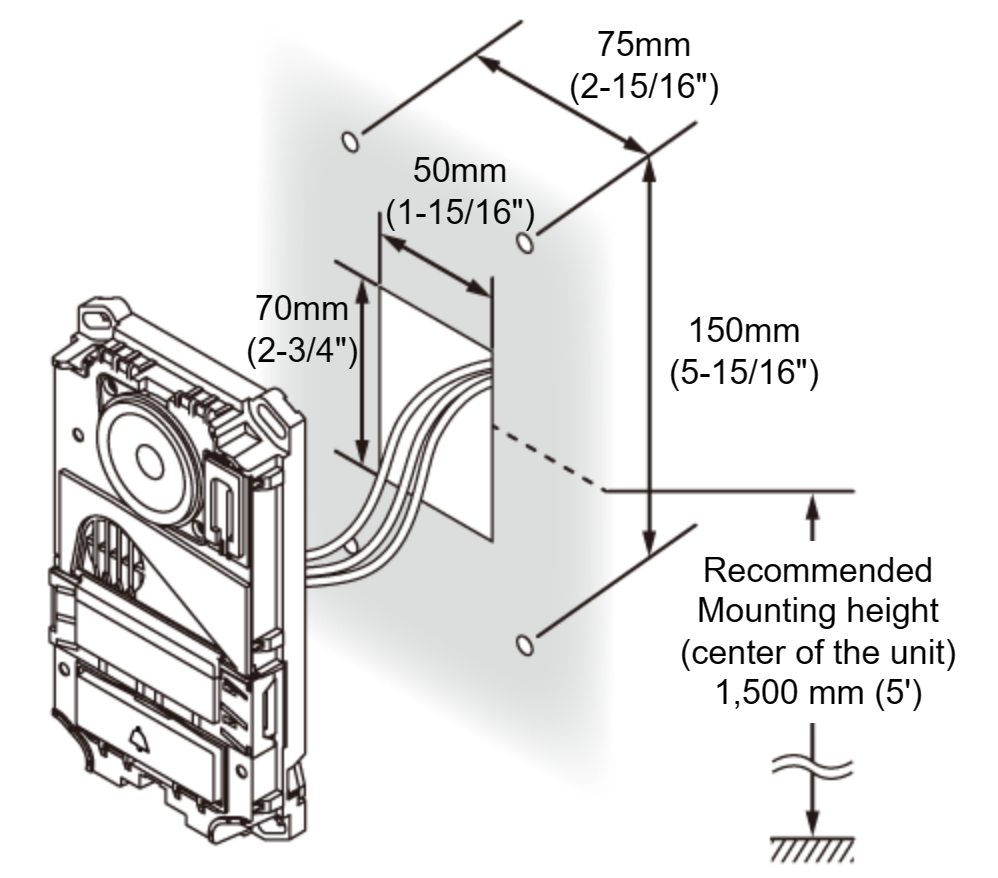

4. Fasten the station [B] to the mounting surface with screws [G] (×4), then replace the front panel [A] and tighten the special screw with the included special screwdriver [C].
   Use a commercially-available anchor [H] if necessary.




   ATTENTION Do not install the station with the cables trapped or pressed hard by the main unit. Do not overtighten the screws. Do not block the drainage holes.

Available screws
