The monitor station is designed for indoor use only. Do not install at outdoor location.
Installing the device in the following locations could cause malfunction: * Locations under direct sunlight (except for door stations) * Locations near heating equipment * Locations subject to liquid, iron filings, dust, oil, or chemicals * Locations subject to moisture and humidity extremes * Locations where the temperature is quite low * Locations subject to steam or oil smoke * Sulphurous environments * Locations close to the sea or directly exposed to sea breeze
The installation height of the station should not exceed 2 m (6.6') (upper edge) from ground level.

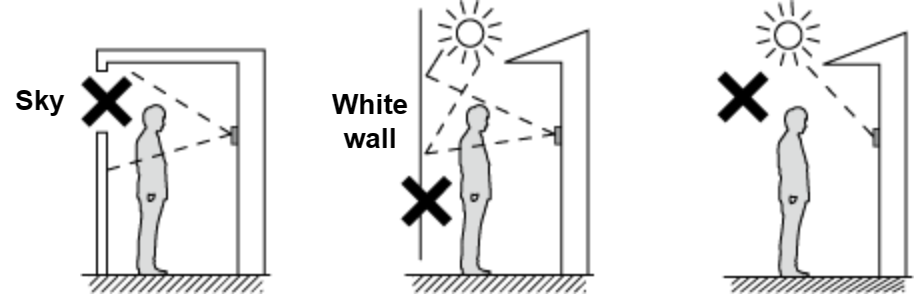

Installing the door station in the following locations as is may affect the clarity of the image: * Where lights will shine directly into the camera at night time * Where the sky fills much of the background * Where the background of the subject is white * Where direct sunlight is present
Installation of lighting is recommended to further improve the nighttime image. When installing a video door station, determine the mounting position so that the light does not directly enter the camera. It is recommended to add at least 5 lux of illumination in addition to the LED illumination for the nighttime.
In 50 Hz regions, if a strong fluorescent light enters directly into the camera, it may cause the image to flicker. Either shield the camera from the light or use an inverter fluorescent light.
Do not use an impact driver to fasten screws. Doing so may cause damage to the device.
Always properly secure wall mounted stations to prevent the station from falling.

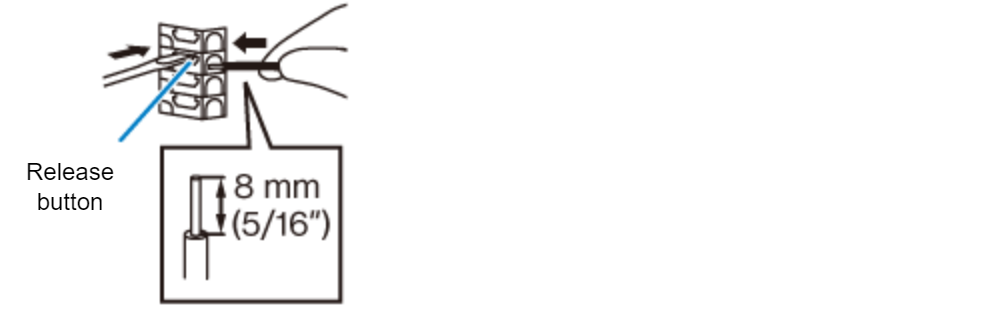

Strip 8 mm (5/16") of the wire jacket and insert it into the terminal. If it is difficult to insert, press and hold the release button while inserting.
