Replacing the nameplate

JV-DV

JV-DVF

1. Peel off the protective seal of a new nameplate (both sides).


2. Fill in the resident's name.
   • Use a permanent marker.
   • Keep the text within the dashed line.



3. Remove the front panel.
   JV-DV:
   Loosen the special screw with the included special screwdriver [A], and remove the front panel [B].


   JV-DVF:
   Loosen the special screws (×4) with the included hexagonal wrench [C], and remove the front panel [D].

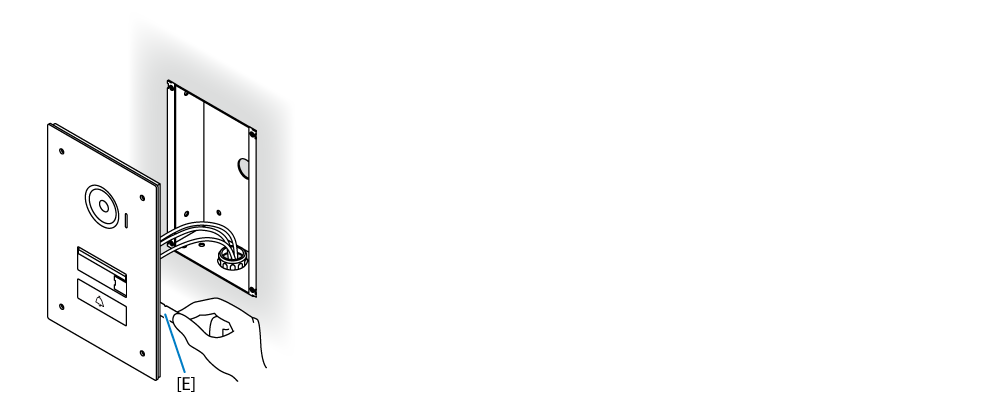

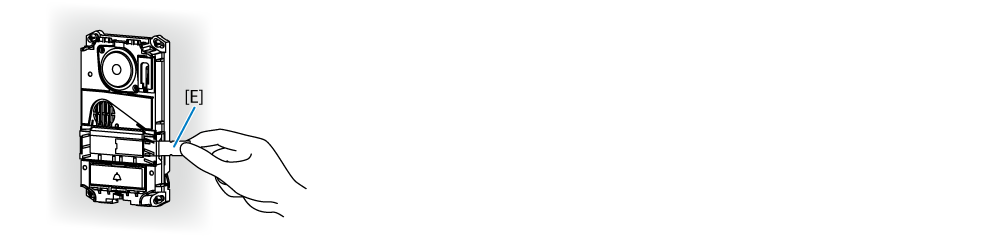

4. Pull out the nameplate [E].
   JV-DV:


   JV-DVF:



5. Insert the filled-in nameplate.


6. Install the front panel in the opposite order of removal.
